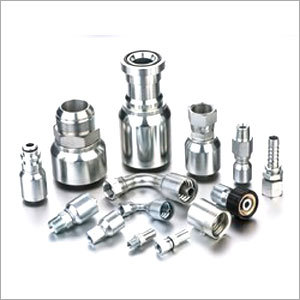

Hose End Fitting/Assemblies

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Backed by the enormous market experience, we are manufacturing and supplying finest quality range of Hose Assemblies. Our entire range is successfully designed by utilizing superior quality metals and other materials as per current industry standards at well equipped production unit. These assemblies are used in pharmaceuticals, construction and engineering industries for fastening on extreme ends of transmission tubes and pipes. Before delivery, it is properly examined on several standards by our quality controllers. We offer these Hose Assemblies to our clients at market leading rates.

Features:

Excellent finish
Easy to install
Light weight

Technical Specification :

HOUSE ID & SIZE - THREADS PER INCH
	1/4"-4	5/16"-5	3/8"-6	1/2"-8	5/8"-10	3/4"-12	1" -16	1 1/4"-20	1 1/2"-24	2"-32
JIC FEMALE FIXED	1/2"-20 7/16"-20 9/16"-18	9/16"-18 5/8"-18	3/4"-16 9/16"-18	7/8"-14 3/4"-16	1 1/16"-12 7/8"-1	1 5/16"-12 1 1/16"-12	1 5/16"-12	1 5/8"-12	1 7/8"-12	2 1/2"-12
METRIC EMALE "O" RING SEALINGS	TubeThread OD SIZE 8-M 12×1.5 8-M 14×1.5 10-M 18×1.5	TubeThread OD SIZE 10-M 14×1.5 10-M 16×1.5 12-M 20×1.5	TubeThread OD SIZE 12-M 16×1.5 12-M 18×1.5 14-M 22×1.5	TubeThread OD SIZE 15-M 22×1.5 16-M 24×1.5	TubeThread OD SIZE 18-M 26×1.5 20-M 30×2	TubeThread OD SIZE 22-M 30×2 25-M 36×2	TubeThread OD SIZE 28-M 36×2 30-M 42×2	TubeThread OD SIZE 35-M 45×2 38-M 52×2	TubeThread OD SIZE 42-M 52×2
METRIX MALE FIXED	M 14×1.5 M 18×1.5	M 16×1.5	M 18×1.5 M 22×1.5	M 22×1.5 M 24×1.5	M 26×1.5 M 30×1.5	M 30×1.5 M 36×1.5	M 36×1.5 M 42×1.5	M 45×1.5 M 52×1.5	M 52×1.5
BSP FEMALE SWIVEL	1/4"-19	3/8"-19	3/8"-19 1/2"-14	1/2"-14 5/8"-14	5/8"-14 3/4"-14	3/4"-14 1"-11	1" -11 11/4" -11	1 1/4"-11 1 1/2"-11	1 1/2"-11 2"-11	2"-11
BSP MALE FIXED	1/4"-19 3/8"-19	3/8"-19	3/8"-19 1/2"-14	1/2"-14 5/8"-14	5/8"-14 3/4"-14	3/4"-14 1"-11	1"-11 11/4"-11	1 1/4"-11	1 1/2"-11	2"-11
BSPT MALE FIXED	1/4"-19		3/8" -19	1/2"-14	5/8"-14	3/4" -14	1"-11	1 1/4"-11	1 1/2"-11	2"-11
NPTF MALE FIXED	1/4"-18 3/8"-16	3/8"-18 1/4"-18*	3/8"-18 1/2"-14*	1/2"-14 3/4"-14*	3/4"-14	3/4"-14 1"-11.1/2*	1"-11.1/2* 1 1/4"-11.1/2*	1 1/4" -11.1/2* 11/2-11.1/2*	11/2-11.1/2 2 -11.1/2*	2"-11
SAE SPLIT FLANGE				DIA 30.2MM DIA 38.1MM		DIA 38.1MM DIA 44.5MM	DIA 44.5MM DIA 50.8MM	DIA 50.8MM DIA 60.3MM	DIA 60.3MM DIA 71.4MM	DIA 71.4 MM
SAE SPLIT FLAGE				DIA 31.8MM DIA 41.3MM		DIA 41.3MM DIA 47.6MM	DIA 47.6MM DIA 54MM	DIA 54MM DIA 63.5MM	DIA 63.5MM DIA 79.4MM	DIA 79.4 M
